CNC lathe / horizontal / orbital / portable ø 38 – 200 mm | Top 200 数控车床/水平/轨道/便携式ø38 – 200毫米|前200
Characteristics
特点
Control type:
控制类型：
CNC
数控
Spindle orientation:
主轴方向：
horizontal
水平
Other characteristics:
其他特点：
orbital, portable, Y-axis
轨道，便携式，Y轴
Description
描述

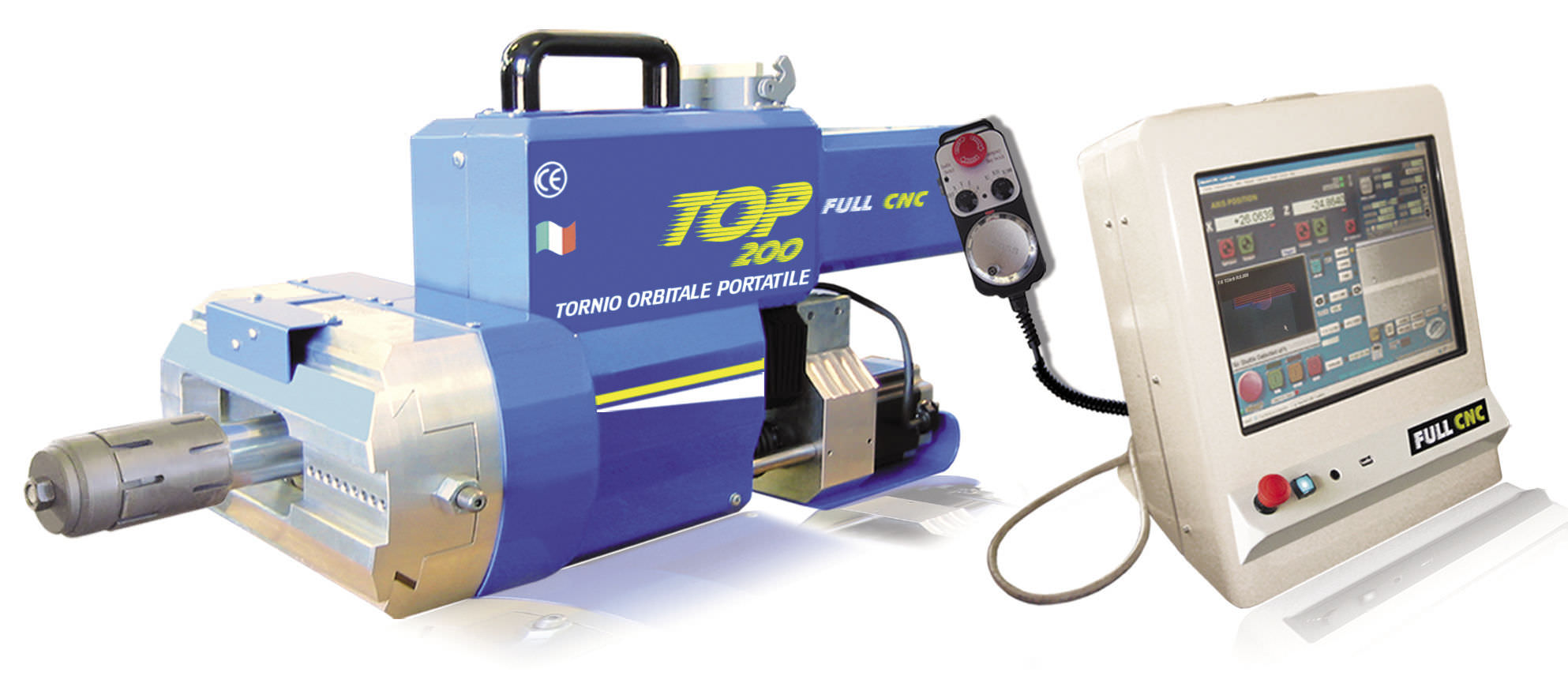

The TOP 200 is an orbital lathe engineered by Sir Meccanica. It is suitable for use in tracing circular paths around a piece to be processed. The unit executes cutting through the relative rotation between the piece and cutting tool. It is a portable tool enabling installation and fastening directly on the piece, instead of on the piece installed on the machine.
排名前200位的是轨道工程机械车床先生。它适用于在一块被处理的工件的跟踪循环路径中使用。该单元通过工件和刀具之间的相对旋转来执行切削。它是一种便携式工具，可以直接安装和紧固件上，而不是装在机器上的工件上。
The lathe features a one-piece control panel body to ensure easy operation, using a touch screen and a handwheel.
车床具有单件控制面板体确保操作方便，使用触摸屏和手轮。
It has an external machining diameter range of 38 mm to 200 mm. The machine has a spindle “S” rotation up to 210 rpm. It comes with a stroke length of 50 mm on x-axis, and 100 mm on y-axis.
它有一个外部的加工直径范围为38毫米至200毫米。这台机器有一个主轴的旋转210转。它与X轴50毫米和100毫米冲程长度，Y轴。
